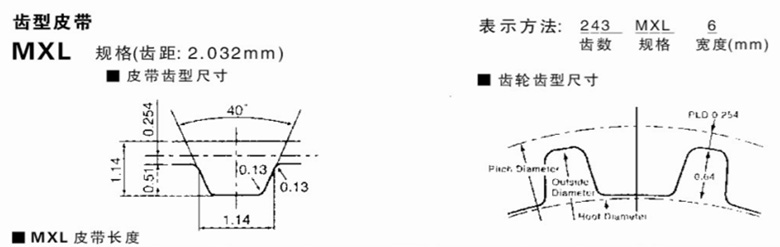

Спецификация зубчатых ремней типа MXL
Specification |
Length (mm) |
Tooth number |
|
Specification |
Length (mm) |
Tooth number |
B36MXL |
73.152 |
36 |
B104MXL |
211.328 |
104 |
B39MXL |
79.248 |
39 |
B105MXL |
213.36 |
105 |
B40MXL |
81.28 |
40 |
B106MXL |
215.392 |
106 |
B41MXL |
83.312 |
41 |
B107MXL |
217.424 |
107 |
B45MXL |
91.44 |
45 |
B109MXL |
221.488 |
109 |
B48MXL |
97.536 |
48 |
B110MXL |
223.52 |
110 |
B49MXL |
99.568 |
49 |
B112MXL |
227.584 |
112 |
B50MXL |
101.6 |
50 |
B114MXL |
231.648 |
114 |
B52MXL |
105.664 |
52 |
B115MXL |
233.68 |
115 |
B53MXL |
107.696 |
53 |
B117MXL |
237.744 |
117 |
B54MXL |
109.728 |
54 |
B118MXL |
239.776 |
118 |
B55MXL |
111.76 |
55 |
B120MXL |
243.84 |
120 |
B56MXL |
113.792 |
56 |
B122MXL |
247.904 |
122 |
B57MXL |
115.824 |
57 |
B123MXL |
249.936 |
123 |
B58MXL |
117.856 |
58 |
B125MXL |
254 |
125 |
B59MXL |
119.888 |
59 |
B126MXL |
256.032 |
126 |
B60MXL |
121.92 |
60 |
B127MXL |
258.064 |
127 |
B61MXL |
123.952 |
61 |
B128MXL |
260.096 |
128 |
B62MXL |
125.984 |
62 |
B129MXL |
262.128 |
129 |
B63MXL |
128.016 |
63 |
B130MXL |
264.16 |
130 |
B64MXL |
130.048 |
64 |
B131MXL |
266.192 |
131 |
B65MXL |
132.08 |
65 |
B132MXL |
268.224 |
132 |
B67MXL |
136.144 |
67 |
B134MXL |
272.288 |
134 |
B68MXL |
138.176 |
68 |
B135MXL |
274.32 |
135 |
B69MXL |
140.208 |
69 |
B136MXL |
276.352 |
136 |
B70MXL |
142.24 |
70 |
B137MXL |
278.384 |
137 |
B71MXL |
144.272 |
71 |
B138MXL |
280.416 |
138 |
B72MXL |
146.304 |
72 |
B139MXL |
282.448 |
139 |
B73MXL |
148.336 |
73 |
B140MXL |
284.48 |
140 |
B74MXL |
150.368 |
74 |
B142MXL |
288.544 |
142 |
B75MXL |
152.4 |
75 |
B144MXL |
292.608 |
144 |
B76MXL |
154.432 |
76 |
B145MXL |
294.64 |
145 |
B77MXL |
156.464 |
77 |
B148MXL |
300.736 |
148 |
B78MXL |
158.496 |
78 |
B150MXL |
304.8 |
150 |
B79MXL |
160.528 |
79 |
B151MXL |
306.832 |
151 |
B80MXL |
162.56 |
80 |
B154MXL |
312.928 |
154 |
B81MXL |
164.592 |
81 |
B155MXL |
314.96 |
155 |
B82MXL |
166.624 |
82 |
B156MXL |
316.992 |
156 |
B83MXL |
168.656 |
83 |
B158MXL |
321.056 |
158 |
B84MXL |
170.688 |
84 |
B160MXL |
325.12 |
160 |
B85MXL |
172.72 |
85 |
B162MXL |
329.184 |
162 |
B86MXL |
174.752 |
86 |
B163MXL |
331.216 |
163 |
B87MXL |
176.784 |
87 |
B165MXL |
335.28 |
165 |
B88MXL |
178.816 |
88 |
B166MXL |
337.312 |
166 |
B89MXL |
180.848 |
89 |
B167MXL |
339.344 |
167 |
B90MXL |
182.88 |
90 |
B169MXL |
343.408 |
169 |
B91MXL |
184.912 |
91 |
B170MXL |
345.44 |
170 |
B92MXL |
186.944 |
92 |
B171MXL |
347.472 |
171 |
B94MXL |
191.008 |
94 |
B175MXL |
355.6 |
175 |
B95MXL |
193.04 |
95 |
B177MXL |
359.664 |
177 |
B97MXL |
197.104 |
97 |
B180MXL |
365.76 |
180 |
B98MXL |
199.136 |
98 |
B184MXL |
373.888 |
184 |
B100MXL |
203.2 |
100 |
B186MXL |
377.952 |
186 |
B101MXL |
205.232 |
101 |
B190MXL |
386.08 |
190 |
B102MXL |
207.264 |
102 |
B192MXL |
390.144 |
192 |
B103MXL |
209.296 |
103 |
B194MXL |
394.208 |
194 |
Specification |
Length (mm) |
Tooth number |
|
Specification |
Length (mm) |
Tooth number |
B195MXL |
396.24 |
195 |
B354MXL |
719.328 |
354 |
B200MXL |
406.4 |
200 |
B356MXL |
723.392 |
356 |
B205MXL |
416.56 |
205 |
B358MXL |
727.456 |
358 |
B210MXL |
426.72 |
210 |
B360MXL |
731.52 |
360 |
B212MXL |
430.784 |
212 |
B365MXL |
741.68 |
365 |
B216MXL |
438.912 |
216 |
B371MXL |
753.872 |
371 |
B220MXL |
447.04 |
220 |
B372MXL |
755.904 |
372 |
B221MXL |
449.072 |
221 |
B380MXL |
772.16 |
380 |
B222MXL |
451.104 |
222 |
B388MXL |
788.416 |
388 |
B224MXL |
455.168 |
224 |
B390MXL |
792.48 |
390 |
B225MXL |
457.2 |
225 |
B397MXL |
806.704 |
397 |
B228MXL |
463.296 |
228 |
B400MXL |
812.8 |
400 |
B229MXL |
465.328 |
229 |
B402MXL |
816.864 |
402 |
B230MXL |
467.36 |
230 |
B408MXL |
829.056 |
408 |
B232MXL |
471.424 |
232 |
B412MXL |
837.184 |
412 |
B235MXL |
477.52 |
235 |
B419MXL |
851.408 |
419 |
B236MXL |
479.552 |
236 |
B420MXL |
853.44 |
420 |
B239MXL |
485.648 |
239 |
B421MXL |
855.472 |
421 |
B240MXL |
487.68 |
240 |
B424MXL |
861.568 |
424 |
B243MXL |
493.776 |
243 |
B425MXL |
863.6 |
425 |
B245MXL |
497.84 |
245 |
B427MXL |
867.664 |
427 |
B248MXL |
503.936 |
248 |
B431MXL |
875.792 |
431 |
B249MXL |
505.968 |
249 |
B434MXL |
881.888 |
434 |
B250MXL |
508 |
250 |
B436MXL |
885.952 |
436 |
B251MXL |
510.032 |
251 |
B440MXL |
894.08 |
440 |
B256MXL |
520.192 |
256 |
B442MXL |
898.144 |
442 |
B262MXL |
532.384 |
262 |
B447MXL |
908.304 |
447 |
B265MXL |
538.48 |
265 |
B448MXL |
910.336 |
448 |
B267MXL |
542.544 |
267 |
B453MXL |
920.496 |
453 |
B271MXL |
550.672 |
271 |
B458MXL |
930.656 |
458 |
B273MXL |
554.736 |
273 |
B463MXL |
940.816 |
463 |
B275MXL |
558.8 |
275 |
B466MXL |
946.912 |
466 |
B280MXL |
568.96 |
280 |
B472MXL |
959.104 |
472 |
B285MXL |
579.12 |
285 |
B475MXL |
965.2 |
475 |
B288MXL |
585.216 |
288 |
B482MXL |
979.424 |
482 |
B290MXL |
589.28 |
290 |
B487MXL |
989.584 |
487 |
B295MXL |
599.44 |
295 |
B488MXL |
991.616 |
488 |
B298MXL |
605.536 |
298 |
B490MXL |
995.68 |
490 |
B300MXL |
609.6 |
300 |
B497MXL |
1009.904 |
497 |
B310MXL |
629.92 |
310 |
B498MXL |
1011.936 |
498 |
B312MXL |
633.984 |
312 |
B500MXL |
1016 |
500 |
B315MXL |
640.08 |
315 |
B505MXL |
1026.16 |
505 |
B318MXL |
646.176 |
318 |
B522MXL |
1060.704 |
522 |
B323MXL |
656.336 |
323 |
B535MXL |
1087.12 |
535 |
B324MXL |
658.368 |
324 |
B537MXL |
1091.184 |
537 |
B328MXL |
666.496 |
328 |
B540MXL |
1097.28 |
540 |
B330MXL |
670.56 |
330 |
B543MXL |
1103.376 |
543 |
B332MXL |
674.624 |
332 |
B546MXL |
1109.472 |
546 |
B334MXL |
678.688 |
334 |
B548MXL |
1113.536 |
548 |
B337MXL |
684.784 |
337 |
B571MXL |
1160.272 |
571 |
B339MXL |
688.848 |
339 |
B591MXL |
1200.912 |
591 |
B340MXL |
690.88 |
340 |
B592MXL |
1202.944 |
592 |
B342MXL |
694.944 |
342 |
B599MXL |
1217.168 |
599 |
B343MXL |
696.976 |
343 |
B612MXL |
1243.584 |
612 |
B347MXL |
705.104 |
347 |
B648MXL |
1316.736 |
648 |
B350MXL |
711.2 |
350 |
B694MXL |
1410.208 |
694 |
