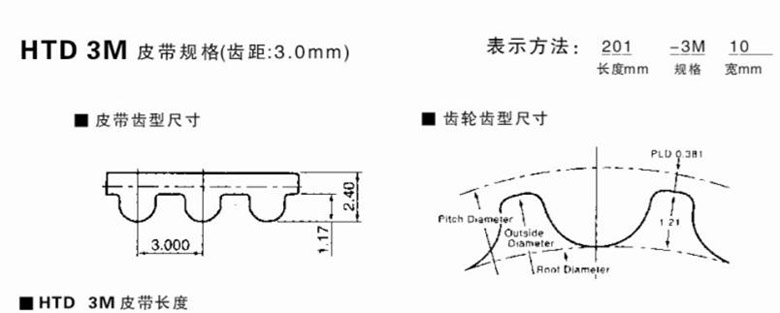

Спецификация зубчатых ремней типа HTD 3M
|
Specification |
Length (mm) |
Tooth number |
Specification |
Length (mm) |
Tooth number |
Specification |
Length(mm) |
Tooth number |
Specification |
Length (mm) |
Tooth number | |||
|
87-3M |
87.0 |
29 |
294-3M |
294.0 |
98 |
531-3M |
531.0 |
177 |
1026-3M |
1026.0 |
342 | |||
|
105-3M |
105.0 |
35 |
297-3M |
297.0 |
99 |
537-3M |
537.0 |
179 |
1038-3M |
1038.0 |
346 | |||
|
108-3M |
108.0 |
36 |
300-3M |
300.0 |
100 |
549-3M |
549.0 |
183 |
1050-3M |
1050.0 |
350 | |||
|
111-3M |
111.0 |
37 |
303-3M |
303.0 |
101 |
552-3M |
552.0 |
184 |
1071-3M |
1071.0 |
357 | |||
|
120-3M |
120.0 |
40 |
306-3M |
306.0 |
102 |
558-3M |
558.0 |
186 |
1080-3M |
1080.0 |
360 | |||
|
123-3M |
123.0 |
41 |
309-3M |
309.0 |
103 |
564-3M |
564.0 |
188 |
1086-3M |
1086.0 |
362 | |||
|
126-3M |
126.0 |
42 |
312-3M |
312.0 |
104 |
567-3M |
567.0 |
189 |
1110-3M |
1110.0 |
370 | |||
|
129-3M |
129.0 |
43 |
315-3M |
315.0 |
105 |
570-3M |
570.0 |
190 |
1188-3M |
1188.0 |
396 | |||
|
132-3M |
132.0 |
44 |
318-3M |
318.0 |
106 |
573-3M |
573.0 |
191 |
1227-3M |
1227.0 |
409 | |||
|
135-3M |
135.0 |
45 |
324-3M |
324.0 |
108 |
579-3M |
579.0 |
193 |
1245-3M |
1245.0 |
415 | |||
|
141-3M |
141.0 |
47 |
327-3M |
327.0 |
109 |
582-3M |
582.0 |
194 |
1260-3M |
1260.0 |
420 | |||
|
144-3M |
144.0 |
48 |
330-3M |
330.0 |
110 |
591-3M |
591.0 |
197 |
1263-3M |
1263.0 |
421 | |||
|
147-3M |
147.0 |
49 |
333-3M |
333.0 |
111 |
594-3M |
594.0 |
198 |
1500-3M |
1500.0 |
500 | |||
|
150-3M |
150.0 |
50 |
336-3M |
336.0 |
112 |
597-3M |
597.0 |
199 |
1530-3M |
1530.0 |
510 | |||
|
153-3M |
153.0 |
51 |
339-3M |
339.0 |
113 |
600-3M |
600.0 |
200 |
1800-3M |
1800.0 |
600 | |||
|
156-3M |
156.0 |
52 |
342-3M |
342.0 |
114 |
609-3M |
609.0 |
203 |
1863-3M |
1863.0 |
621 | |||
|
159-3M |
159.0 |
53 |
345-3M |
345.0 |
115 |
612-3M |
612.0 |
204 |
1926-3M |
1926.0 |
642 | |||
|
162-3M |
162.0 |
54 |
351-3M |
351.0 |
117 |
627-3M |
627.0 |
209 |
|
|
| |||
|
165-3M |
165.0 |
55 |
357-3M |
357.0 |
119 |
633-3M |
633.0 |
211 |
|
|
| |||
|
168-3M |
168.0 |
56 |
360-3M |
360.0 |
120 |
645-3M |
645.0 |
215 |
|
|
| |||
|
171-3M |
171.0 |
57 |
363-3M |
363.0 |
121 |
648-3M |
648.0 |
216 |
|
|
| |||
|
174-3M |
174.0 |
58 |
372-3M |
372.0 |
124 |
654-3M |
654.0 |
218 |
|
|
| |||
|
177-3M |
177.0 |
59 |
375-3M |
375.0 |
125 |
660-3M |
660.0 |
220 |
|
|
| |||
|
180-3M |
180.0 |
60 |
381-3M |
381.0 |
127 |
666-3M |
666.0 |
222 |
|
|
| |||
|
183-3M |
183.0 |
61 |
384-3M |
384.0 |
128 |
669-3M |
669.0 |
223 |
|
|
| |||
|
186-3M |
186.0 |
62 |
393-3M |
393.0 |
131 |
672-3M |
672.0 |
224 |
|
|
| |||
|
189-3M |
189.0 |
63 |
396-3M |
396.0 |
132 |
681-3M |
681.0 |
227 |
|
|
| |||
|
192-3M |
192.0 |
64 |
402-3M |
402.0 |
134 |
687-3M |
687.0 |
229 |
|
|
| |||
|
195-3M |
195.0 |
65 |
405-3M |
405.0 |
135 |
690-3M |
690.0 |
230 |
|
|
| |||
|
198-3M |
198.0 |
66 |
420-3M |
420.0 |
140 |
693-3M |
693.0 |
231 |
|
|
| |||
|
201-3M |
201.0 |
67 |
423-3M |
423.0 |
141 |
699-3M |
699.0 |
233 |
|
|
| |||
|
204-3M |
204.0 |
68 |
426-3M |
426.0 |
142 |
702-3M |
702.0 |
234 |
|
|
| |||
|
207-3M |
207.0 |
69 |
432-3M |
432.0 |
144 |
705-3M |
705.0 |
235 |
|
|
| |||
|
210-3M |
210.0 |
70 |
435-3M |
435.0 |
145 |
711-3M |
711.0 |
237 |
|
|
| |||
|
213-3M |
213.0 |
71 |
438-3M |
438.0 |
146 |
720-3M |
720.0 |
240 |
|
|
| |||
|
222-3M |
222.0 |
74 |
441-3M |
441.0 |
147 |
723-3M |
723.0 |
241 |
|
|
| |||
|
225-3M |
225.0 |
75 |
444-3M |
444.0 |
148 |
732-3M |
732.0 |
244 |
|
|
| |||
|
228-3M |
228.0 |
76 |
447-3M |
447.0 |
149 |
735-3M |
735.0 |
245 |
|
|
| |||
|
234-3M |
234.0 |
78 |
459-3M |
459.0 |
153 |
738-3M |
738.0 |
246 |
|
|
| |||
|
237-4M |
237.0 |
79 |
462-3M |
462.0 |
154 |
750-3M |
750.0 |
250 |
|
|
| |||
|
243-3M |
243.0 |
81 |
468-3M |
468.0 |
156 |
753-3M |
753.0 |
251 |
|
|
| |||
|
246-3M |
246.0 |
82 |
471-3M |
471.0 |
157 |
783-3M |
783.0 |
261 |
|
|
| |||
|
249-3M |
249.0 |
83 |
474-3M |
474.0 |
158 |
804-3M |
804.0 |
268 |
|
|
| |||
|
252-3M |
252.0 |
84 |
477-3M |
477.0 |
159 |
822-3M |
822.0 |
274 |
|
|
| |||
|
255-3M |
255.0 |
85 |
480-3M |
480.0 |
160 |
825-3M |
825.0 |
275 |
|
|
| |||
|
258-3M |
258.0 |
86 |
483-3M |
483.0 |
161 |
843-3M |
843.0 |
281 |
|
|
| |||
|
264-3M |
264.0 |
88 |
486-3M |
486.0 |
162 |
858-3M |
858.0 |
286 |
|
|
| |||
|
267-3M |
267.0 |
89 |
501-3M |
501.0 |
167 |
861-3M |
861.0 |
287 |
|
|
| |||
|
270-3M |
270.0 |
90 |
504-3M |
504.0 |
168 |
873-3M |
873.0 |
291 |
|
|
| |||
|
276-3M |
276.0 |
92 |
510-3M |
510.0 |
170 |
882-3M |
882.0 |
294 |
|
|
| |||
|
279-3M |
279.0 |
93 |
513-3M |
513.0 |
171 |
936-3M |
936.0 |
312 |
|
|
| |||
|
282-3M |
282.0 |
94 |
516-3M |
516.0 |
172 |
945-3M |
945.0 |
315 |
|
|
| |||
|
285-3M |
285.0 |
95 |
519-3M |
519.0 |
173 |
975-4M |
975.0 |
325 |
|
|
| |||
|
288-3M |
288.0 |
96 |
522-3M |
522.0 |
174 |
981-3M |
981.0 |
327 |
|
|
| |||
|
291-3M |
291.0 |
97 |
525-3M |
525.0 |
175 |
1002-3M |
1002.0 |
334 |
|
|
|
